USB4 vs Thunderbolt: What's the Real Difference in 2026?

USB4 and Thunderbolt use the same USB-C connector and look identical on a spec sheet, but they aren't the same standard. USB4 is set by the USB Implementers Forum (USB-IF) and leaves several key numbers optional. Thunderbolt is a stricter certification run by Intel on top of USB4 that turns those optional numbers into guarantees — which is exactly why two laptops that both say "USB4" can behave very differently.

USB4 and Thunderbolt Are Not the Same Standard — Here's the Actual Difference

The short version: USB4 is a specification published by the USB-IF, and Thunderbolt is a certification program run by Intel that requires a USB4-compatible device to also meet a longer list of mandatory minimums. Every Thunderbolt port is built on USB4's foundation, but not every USB4 port meets Thunderbolt's bar.

That distinction matters because USB4 was written to be flexible. Manufacturers can ship a USB4 port that runs at 20Gbps, 40Gbps, or (with USB4 Version 2.0) up to 80Gbps, and they can skip optional features like full PCIe tunneling for external GPUs or dual 4K display output. A USB4 logo alone doesn't tell you which of those a specific port supports — you have to check the laptop or dock's actual spec sheet.

Thunderbolt closes that gap. Intel's certification process tests every submitted device against a fixed set of mandatory requirements — a minimum guaranteed speed, a minimum PCIe allocation, a minimum number of supported displays — and only devices that pass get the Thunderbolt logo and lightning-bolt icon. If a cable or dock is Thunderbolt-certified, you don't need to read the fine print to know what it can do.

Speed: 40Gbps, 80Gbps, and What "Bandwidth Boost" Really Changes

USB4 v1 vs USB4 v2 (40 → 80Gbps)

The original USB4 specification tops out at 40Gbps, and that's the speed most USB4 devices on the market in 2026 actually ship with. USB-IF published USB4 Version 2.0 in October 2022, which raises the ceiling to 80Gbps symmetrical using a new PAM3 physical signaling layer, with an optional asymmetric mode that pushes up to 120Gbps in one direction (for display-heavy setups) while leaving 40Gbps in the other. Devices that pass USB-IF's compliance testing for the faster tier carry a separate "USB 80Gbps" logo — it isn't automatic just because a port is USB4.

Thunderbolt 4 vs Thunderbolt 5 (Guaranteed 40 vs Guaranteed 80, Boost to 120)

Thunderbolt 4 guarantees 40Gbps on every certified cable and port — no exceptions, no tiers. That's the same ceiling as base USB4, but on Thunderbolt 4 it's a floor, not a maximum some devices happen to skip. Thunderbolt 5 raises that guaranteed minimum to 80Gbps bidirectional on every certified device, with Bandwidth Boost able to push up to 120Gbps in one direction for video-intensive workloads. The practical difference: a USB4 v1 port might only manage 40Gbps or less depending on implementation, while a Thunderbolt 5 port is contractually required to hit 80Gbps.

In practice, that gap shows up directly in file-transfer time. Moving a 100GB video project between compatible drives takes roughly 20 seconds over Thunderbolt 5's 80Gbps link, versus roughly 40 seconds over a USB4 Version 2.0 connection running at the same nominal speed tier — the difference comes from Thunderbolt's guaranteed sustained bandwidth versus USB4's more variable real-world throughput, based on manufacturer specifications and independent testing.

Displays, Power Delivery, and eGPUs: What USB4 Ports Don't Guarantee

Three areas separate a "good enough" USB4 port from a Thunderbolt-certified one, and all three are places where USB4's spec allows a manufacturer to do less.

Displays. A standard USB4 port typically drives one external 4K display, sometimes a single 8K display depending on the controller, but multi-monitor support isn't guaranteed. Thunderbolt 4 guarantees two external 4K displays (or one 8K display) from every certified port. Thunderbolt 5 raises that further: up to three 8K displays at 60Hz with compression, or three 4K displays at 144Hz, and with DisplayPort 2.1 behind it, Thunderbolt 5 can drive a single 4K panel as fast as 540Hz.

Power delivery. Both Thunderbolt 4 and Thunderbolt 5 support charging up to 240W over USB Power Delivery's Extended Power Range. The difference is the floor: Thunderbolt 5 certification requires at least 140W of charging capability on at least one host port, while Thunderbolt 4 and plain USB4 carry no equivalent mandatory minimum — a USB4 laptop port might charge at anywhere from a few watts to 100W depending on what the manufacturer chose to build.

eGPUs and external storage (PCIe tunneling). Thunderbolt 4 guarantees a minimum of 32Gbps of PCIe bandwidth on every certified port, which is what makes external GPU enclosures and high-end external SSDs reliably usable. PCIe tunneling over plain USB4 is optional — some USB4 ports support it at full speed, some support a reduced allocation, and some skip it. If you're shopping for an eGPU enclosure or a Thunderbolt-class external SSD, check for the Thunderbolt logo specifically rather than assuming any USB4 port will do.

Why Two "USB4" Laptops Can Behave Completely Differently

This is the root cause of most of the confusion buyers run into. USB4 compliance is tested and certified by USB-IF, the same organization that governs standard USB. Its compliance program checks that a device correctly implements the USB4 protocol, but it doesn't force every manufacturer to implement every optional feature at the fastest available tier. Thunderbolt compliance is tested and certified separately by Intel, and Intel's program adds its own mandatory minimums on top — guaranteed speed, guaranteed PCIe bandwidth, guaranteed display count — that a device cannot skip and still carry the Thunderbolt name.

The practical result: two laptops can both legitimately advertise "USB4" while one drives dual external monitors and an eGPU at full speed, and the other barely manages a single 4K display and a slow external drive. There's no shortcut around this other than checking the actual port specification; the fastest visual check is the port icon — a lightning bolt means Thunderbolt and its guarantees apply, while a plain USB4 label means you need to look up the specific laptop model's documented bandwidth, display, and power support.

Docks and Hubs: When a USB4 Dock Is Enough (and When It Isn't)

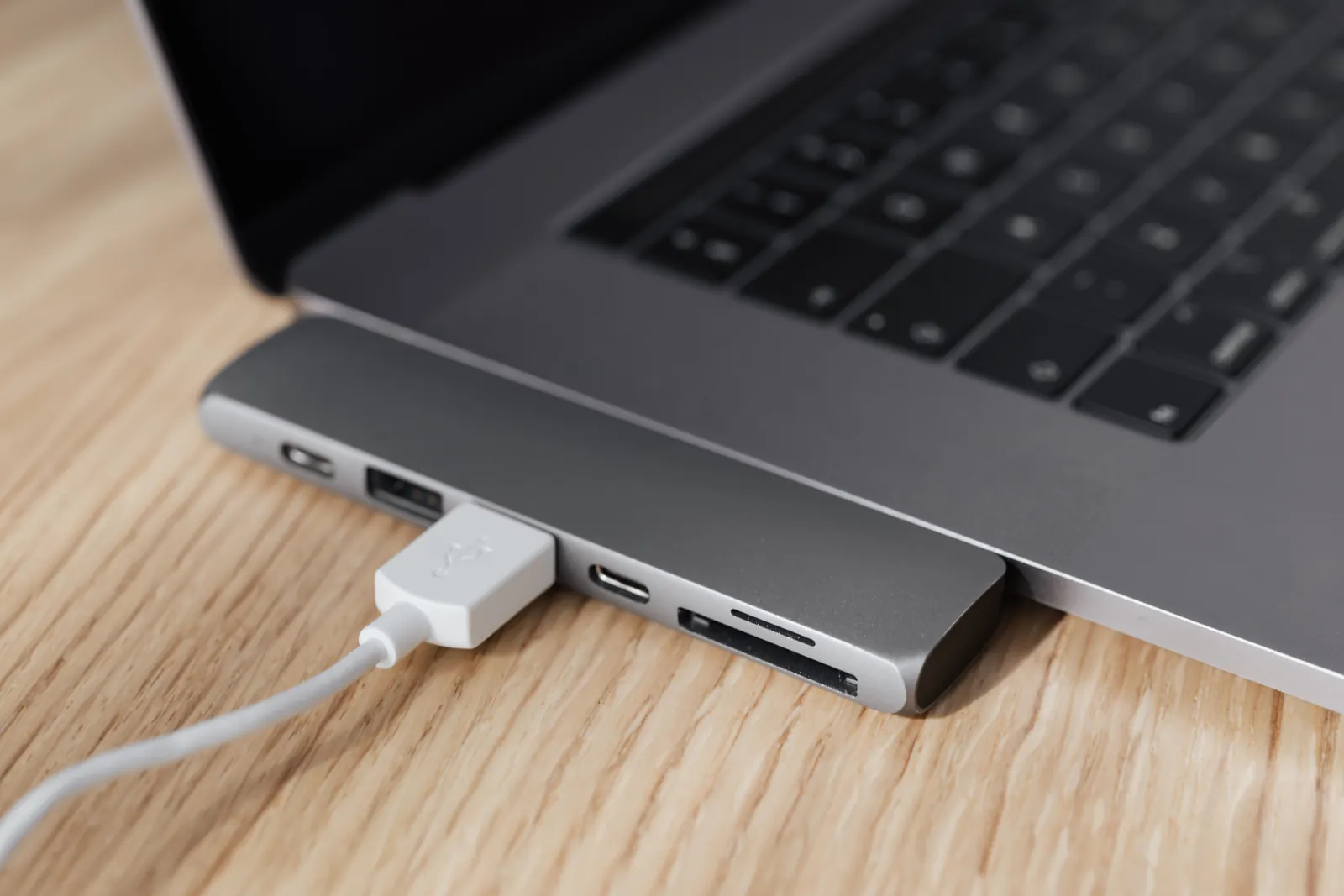

A plain USB4 hub or dock is usually fine for charging, a keyboard and mouse, a flash drive, and a single external monitor — the kind of load that doesn't push against any of USB4's optional limits. Where it gets risky is multi-monitor setups, external GPU enclosures, or any workflow built around a specific guaranteed speed: a USB4 dock's real-world ceiling depends entirely on which chipset the manufacturer used, and that information often isn't on the box.

Intel-certified Thunderbolt 5 docks remove that guesswork, at a price premium. Entry-level Thunderbolt 5 docks such as the Kensington SD5000T5 (around $300, three Thunderbolt 5 ports) and the OWC 11-Port Thunderbolt 5 Dock (around $320, with DisplayPort 2.1 output) sit at the budget end of the certified tier, while docks like the Anker Prime Thunderbolt 5 Docking Station target users who want the full 120Gbps Bandwidth Boost and 240W charging ceiling. If you're deciding between a cheaper USB4 dock and a Thunderbolt one for your desk setup, our USB-C hub vs docking station comparison covers the broader hub-versus-dock decision in more detail.

USB4 vs Thunderbolt 4 vs Thunderbolt 5 at a Glance

Which One Should You Buy?

Get Thunderbolt if you run an external GPU enclosure, edit pro video off external storage, drive two or more 4K monitors from a dock, or just want a hard guarantee that a cable or dock will perform identically on any Thunderbolt-certified machine. Thunderbolt 5 specifically is worth the extra cost if you're moving large video files daily or pushing a high-refresh-rate external display — the 80Gbps guaranteed floor and 120Gbps boost are real, measurable gains over Thunderbolt 4 and over most USB4 implementations.

Plain USB4 is enough if your daily use is charging, flash drives, a single external monitor, or a budget build where you're not chasing eGPU or multi-monitor performance. Just check the specific port's documented speed, display, and power numbers before buying — the USB4 label alone doesn't tell you which tier you're getting.

Frequently asked questions

Sources: USB-IF (via iClarified) — USB4 Version 2.0 Specification Up to 80Gbps, Cable Matters — Thunderbolt 5 vs USB4: Speed, Compatibility, and Performance, Cable Matters — Thunderbolt 4 vs USB4: What's the Difference?, Plugable — USB4 vs Thunderbolt 4: Who Sets the Rules, What's Guaranteed, Macworld — Thunderbolt 5 vs Thunderbolt 4 and 3 vs USB4, Macworld — MacBook Pro M5 Pro/Max: Release, Specs, Price.
